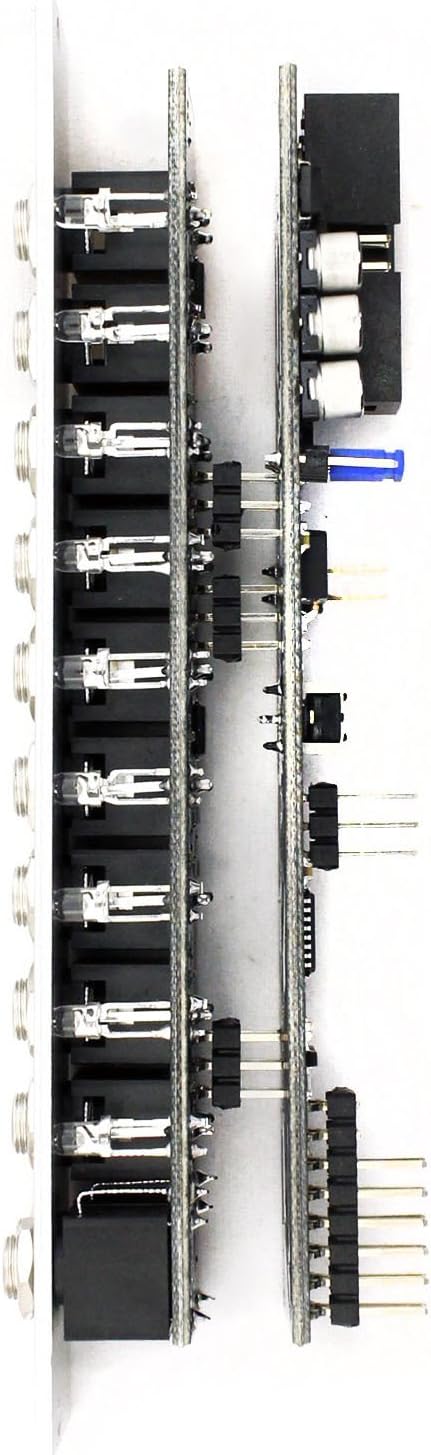

4MS RCD Rotating Clock Divider V2 Eurorack Synth Module w/ 2 Cables

The Rotating Clock Divider (RCD) produces eight divided clock tempos from a single input clock. The divisions range from /1 to /64, including all odd and non-standard divisions such as /3 and /17 and /62. A Rotate CV input re-assigns the division number of each jack, allowing for creative mix-ups and experimentation. A Reset input jack helps to sync/start with an external clock. Jacks Clock Input (5V to 15V clock, rising edge triggered), max 3kHz CV Rotate (0V to +5V input) CV Reset (5V to 15V trigger) Divided Clock Outputs (8 jacks): Divide-by-(1+R) Divide-by-(2+R) Divide-by-(3+R) Divide-by-(4+R) Divide-by-(5+R) Divide-by-(6+R) Divide-by-(7+R) Divide-by-(8+R) ...where R is the CV Rotation. Selectable Gate/Trigger mode: Selectable Divide range up to Divide-by-64: Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel. Selectable Auto-reset: Auto-reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more "dance-able" even when using the "weird" clock divisions (3/5/6/7/9/10/11/etc..) Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.

• CV Reset jack to reset/re-sync all jacks
• CV Rotate jack to shift divide-by amount on each jack
• Divide-by-1 to Divide-by-64, on 8 output jacks
• Divide-by-1 to Divide-by-64, on 8 output jacks
